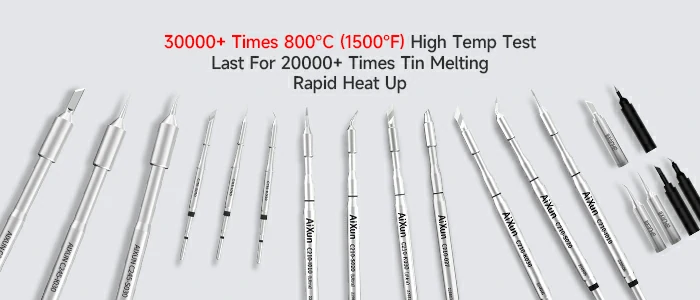

Soldering Tips & Cartridges

C210 Customized Soldering Iron Tips Multifunctional Welding Iron ReplacementC210 Customized Soldering Iron Tips Multifunctional Welding Iron Replacement

C245 Customized Soldering Iron Tips Cartridge Replacement Tip for Soldering ReworkC245 Customized Soldering Iron Tips Cartridge Replacement Tip for Soldering Rework

C115 Customized Soldering Iron Tips Multi-Type Cartridge tip for Electronics RepairC115 Customized Soldering Iron Tips Multi-Type Cartridge tip for Electronics Repair

C115 Soldering Iron Tips for Precision Soldering Rework of Mobile RepairC115 Soldering Iron Tips for Precision Soldering Rework of Mobile Repair

C210 Replacement Soldering Iron Tips For Micro Soldering SMD Rework C210 Replacement Soldering Iron Tips For Micro Soldering SMD Rework

C245 High Level Nano Lead Free Soldering Iron Tips  for JBC Iron Head ReplacementC245 High Level Nano Lead Free Soldering Iron Tips for JBC Iron Head Replacement
1 2

Soldering Iron Tips Guide



Soldering iron tips are essential for effective soldering. They come in various types, including conical, chisel, knife, bevel, needle, and specialized tips. Here's a brief overview:





Types of Soldering Iron Tips:



Conical (B-series) Tips: Pointed tips for precision work.

Chisel (D-series) Tips: Flat tips for broader joints.

Knife (K-series) Tips: Blade-like tips for specific applications.

Bevel (C-series) Tips: Angled tips for versatility.

Needle (I-series) Tips: Ultra-fine tips for delicate work.

Specialized Tips: Custom tips for unique soldering needs.



Soldering Tips for Beginners:



Use a quality soldering iron, preferably temperature-controlled.

Avoid moving the joint while cooling and don't blow on it.

Practice on scrap material before starting your project.

Opt for 60/40 solder, ideal for beginners.

Apply gentle pressure to avoid tip and board damage.

Heat the joint before applying solder and watch for dripping.

Avoid excessive solder – less is often more effective.

Pre-tin wires before soldering for better connections.

Turn off your soldering iron when not in use.



Soldering Process Steps:



Ensure the soldering iron is at the right temperature.

Keep the iron tip clean and coated with solder.

Heat the components for 1-2 seconds, touching both pad and lead.

Feed solder wire when components are heated.

Remove solder wire when sufficient solder is applied.

Finally, remove the iron to complete the soldering.



Best Soldering Iron Tips:



For Micro Soldering SMD Rework: C210 Soldering Iron Tips

For JBC Iron Head Replacement: C245 Nano Lead-Free Soldering Iron Tips

Universal Version Lead-Free: 936 Silver Soldering Iron Tips



Remember, using flux is crucial for a strong metallurgic bond when soldering metals, especially in PCB assembly. Always choose the appropriate flux to match your solder core for optimal results.
