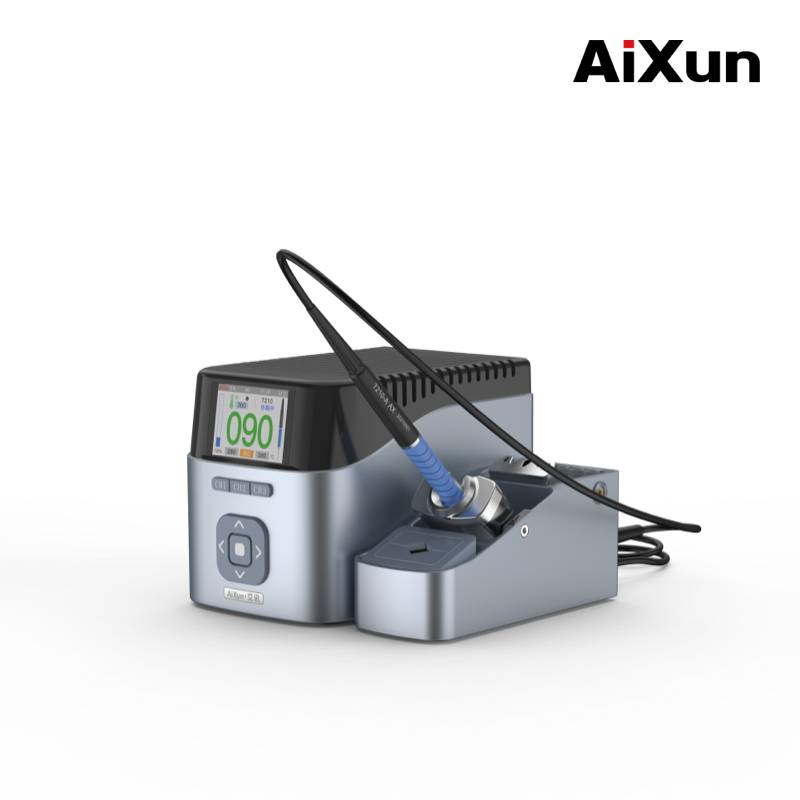

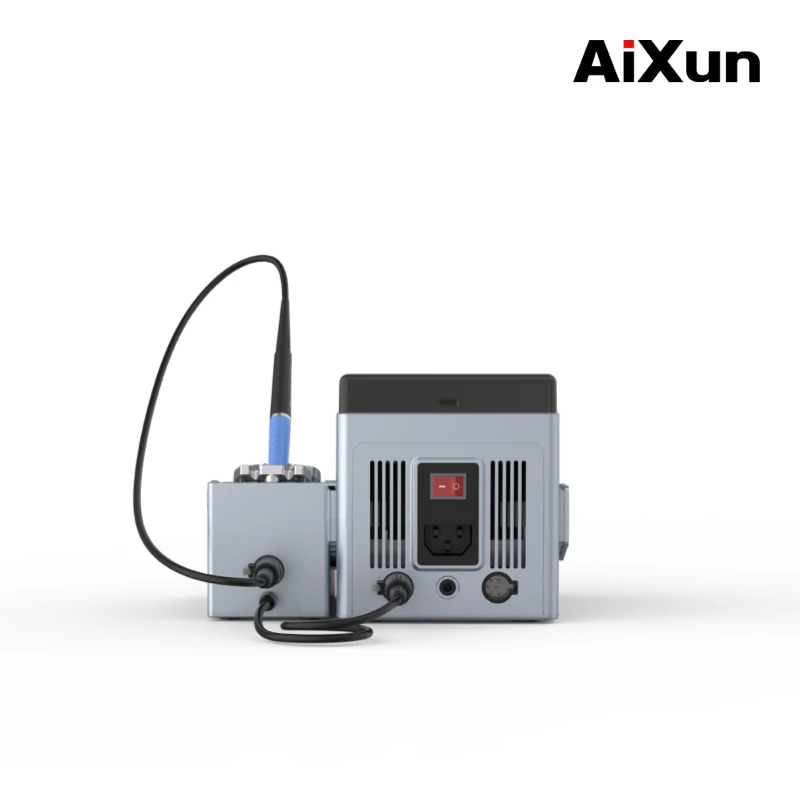

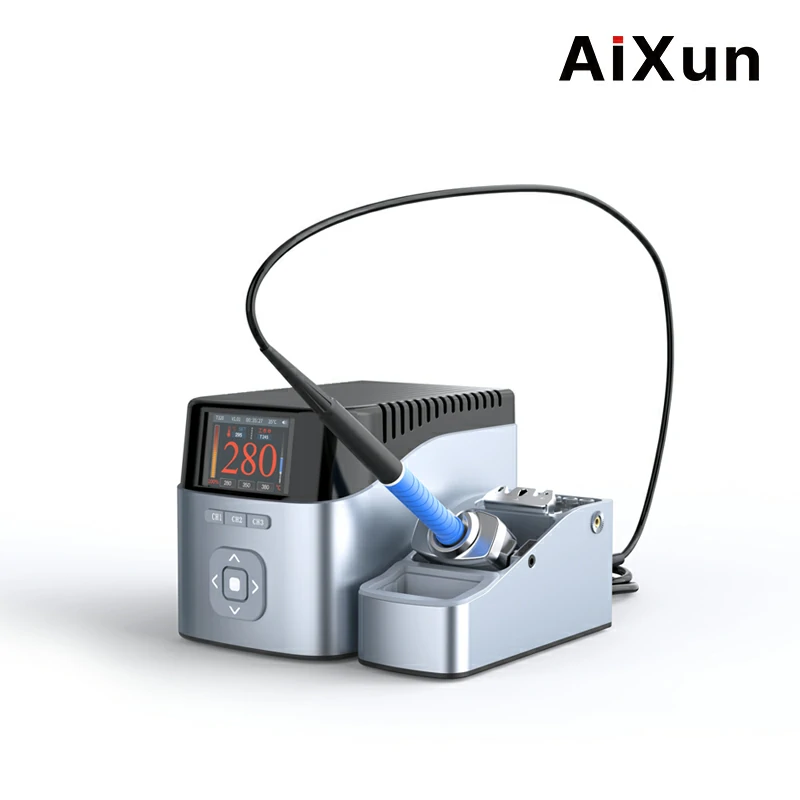

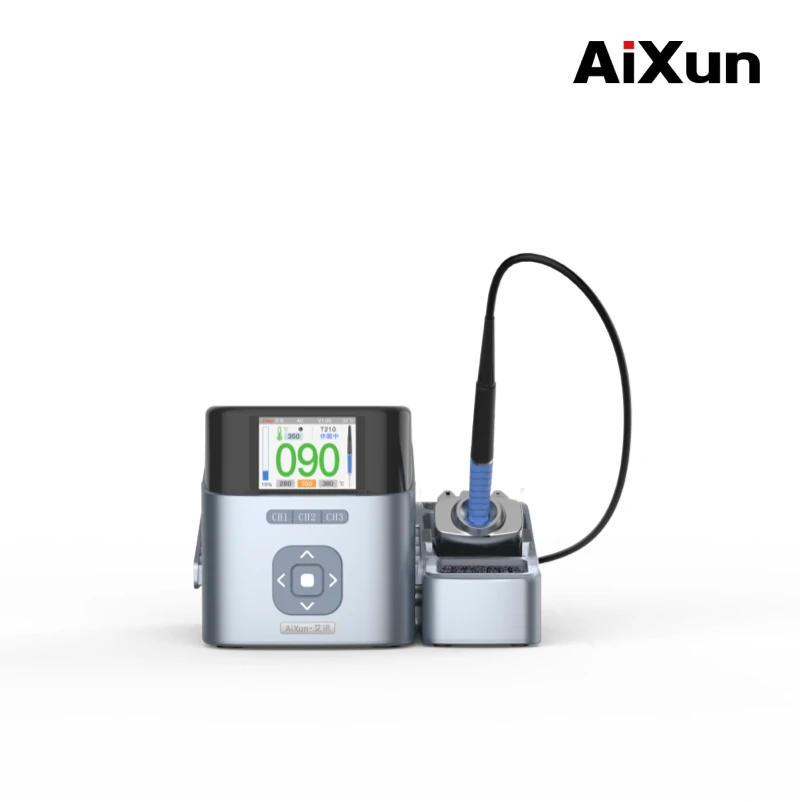

T420 Dual Channel Smart Digital Soldering Station Kit for BGA Rework

Market Price: US $248/PC

• Support T245/T210/T115 three handles, standard package with T210 cradle, support upgrading to two cradles with two channels work together

• Compatible with JBC tips, 100% match with temp rising rate and temp control accuracy

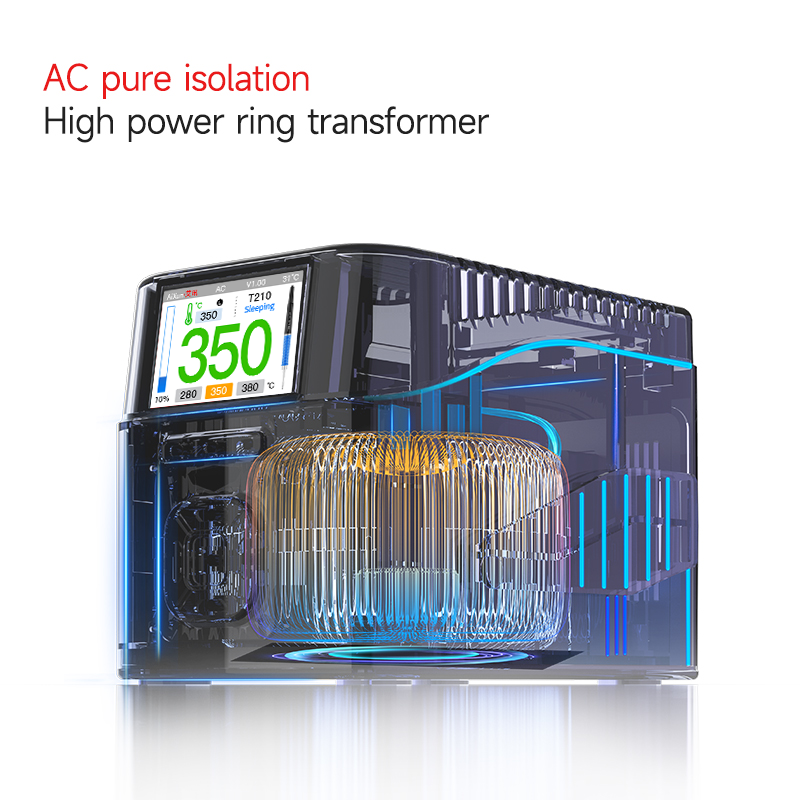

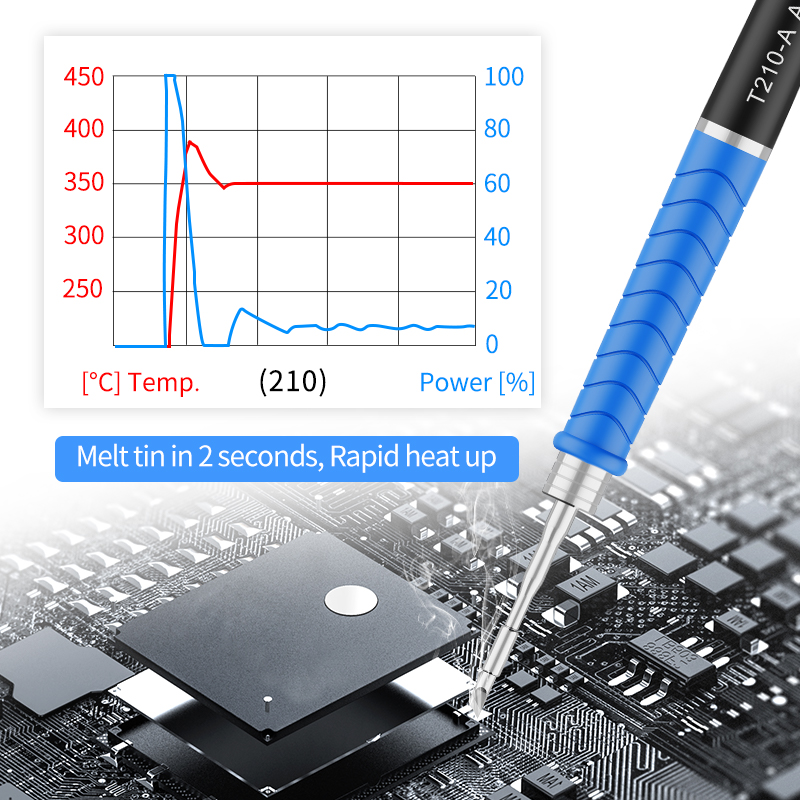

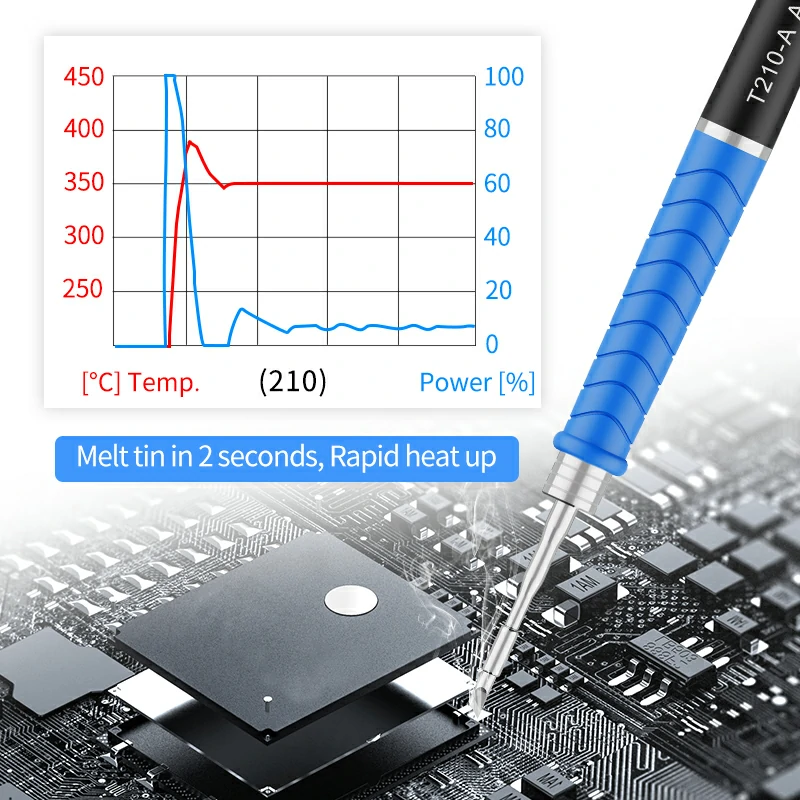

• 200W high power ring transformer, rapid heating speed, quick heating to 380℃ in 2 seconds

• Real time monitoring working status, prolong the service life of soldering tips

• Both suitable for the soldering of large items as well as precise conponents

• AC pure isolation, anti interference and anti static

• Global software upgrade, functions never out of date

Description

Specifications:

Name T420 Dual Channel Smart Soldering Station
Model T420
Brand AiXun

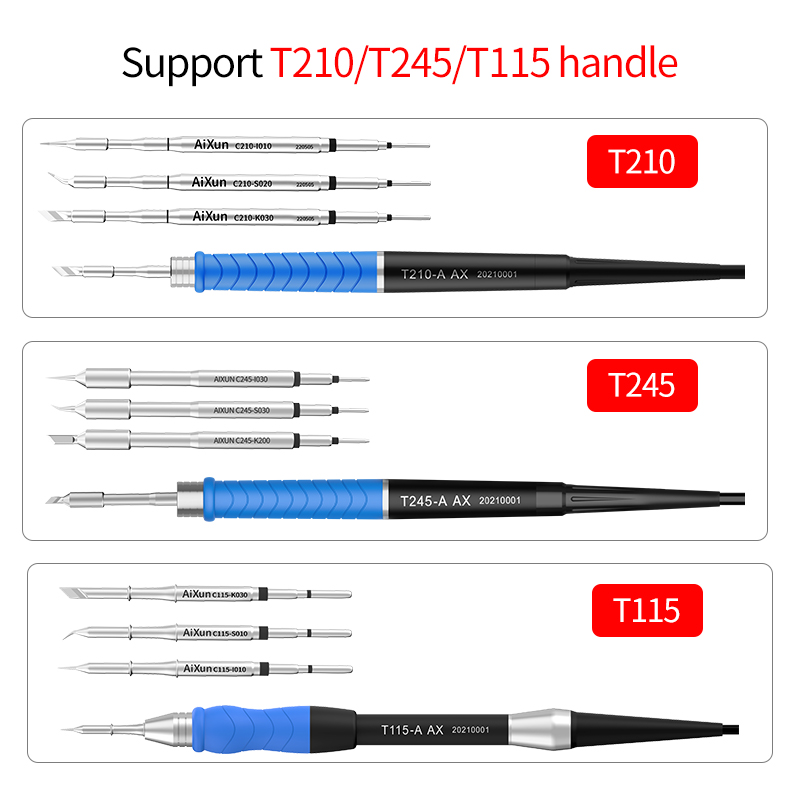

Support soldering handles T245/T210/T115
Input fuse 3A
Peak power 400W
Rated power 200W
Input voltage 220V
Temperature range 90℃-450℃
Main station size 178.4*112*125mm
Handle holder size 154*65*77.4mm
Grounding resistance of tip <2ohms



Features:

AiXun T420 smart dual channel soldering station is a new high efficiency welding station with the intelligent temperature control system which is benefit for prolonging the service of welding iron tips. It is equipped with the 240W super high power ring transformer, with which the temperature is able to heating up to 380℃ only in 2 seconds. It supports T245, T210 and T115 three handles which can  help meet different soldering needs, including soldering large items as well as little tiny precise components such as PCB, BGA, SMT, CPU and mainboard reballing. Like other AiXun products, it also supports global software upgrade, help you enjoy the latest functions and never out of date. It’s a worth- buying soldering station and a necessary tool for mobile rework.

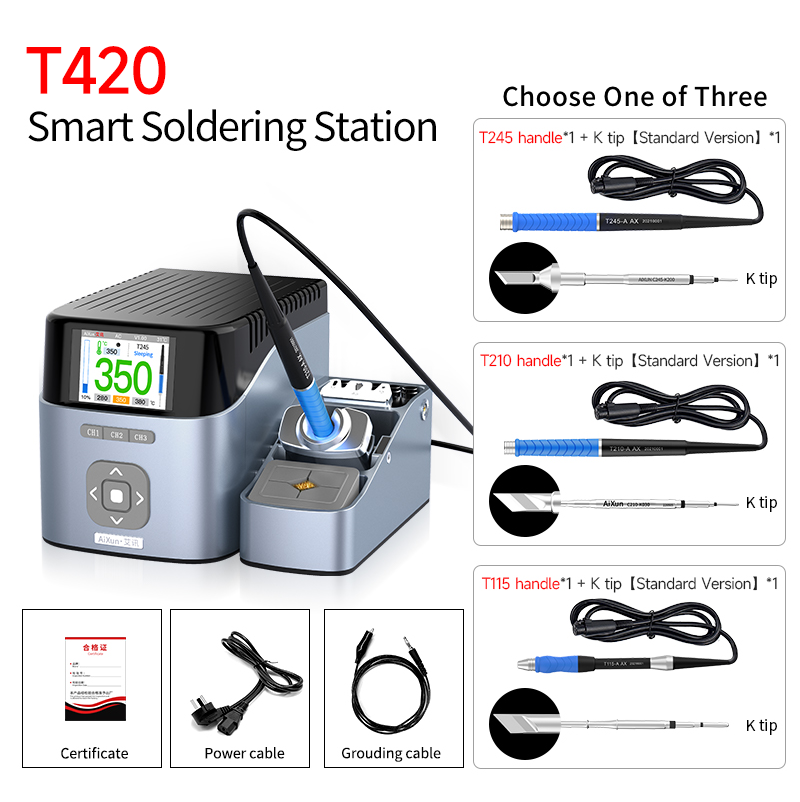

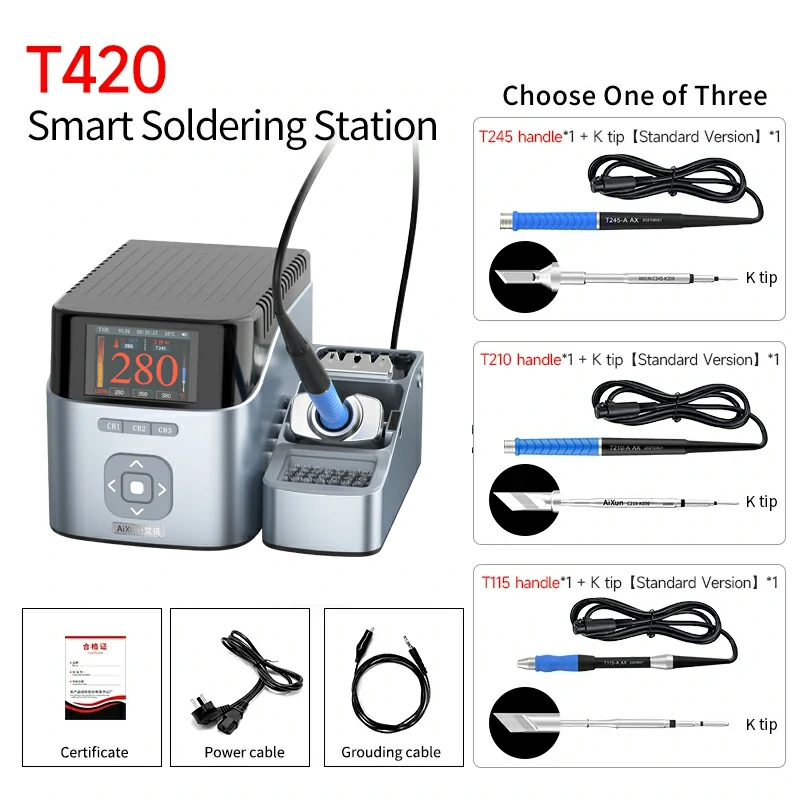

List of Packing:

1x T420 200Watts station

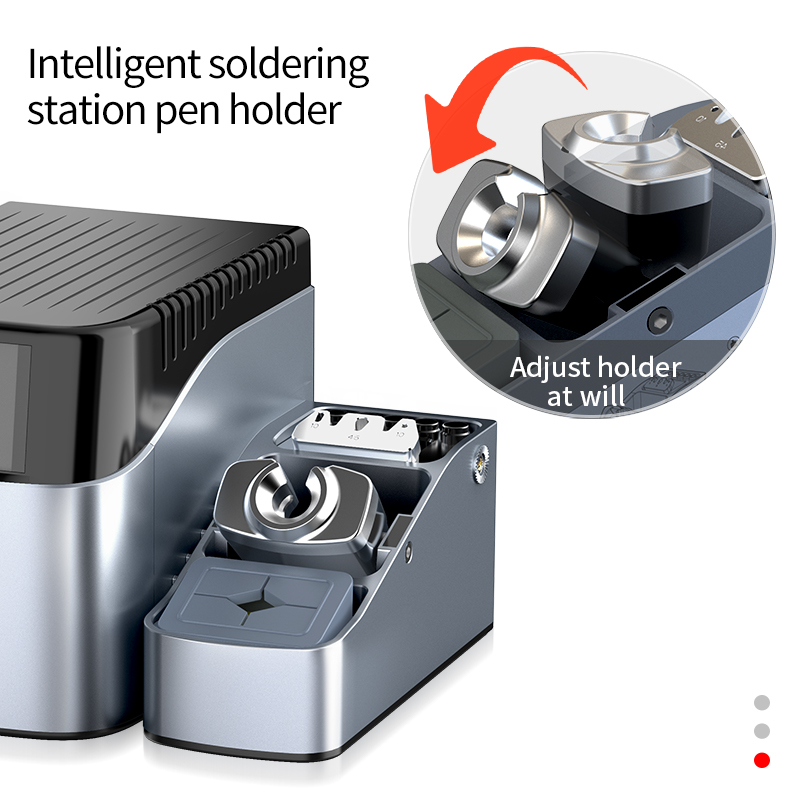

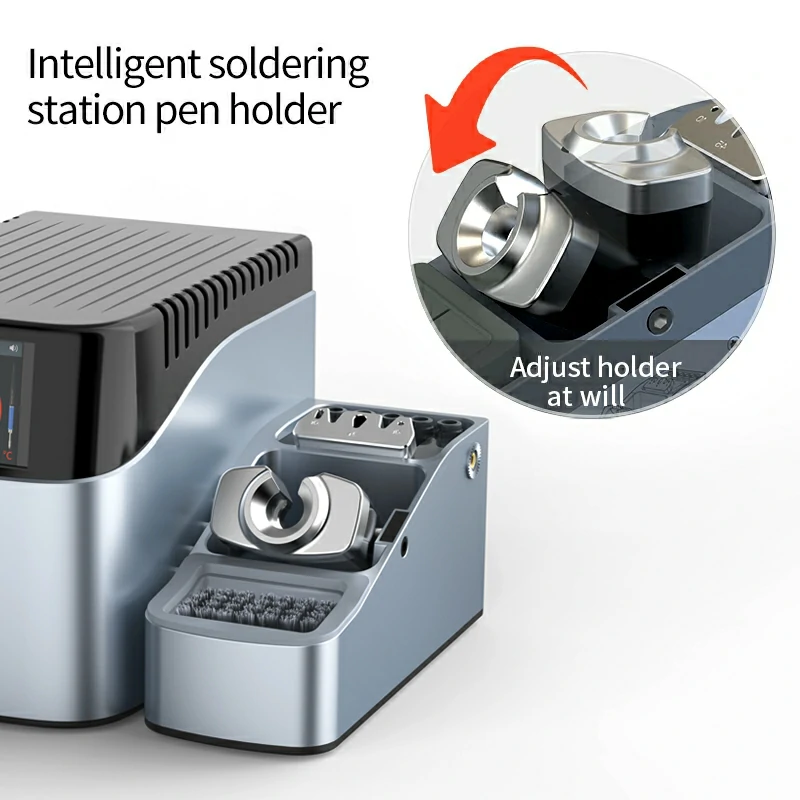

1x Cradle with tip cleaning sponge

1x T210 handle

1x K tip



Packing Details:

1set/box, 6boxes/carton

Box dimension:

Carton dimension:
